Description

MALZEME KODU

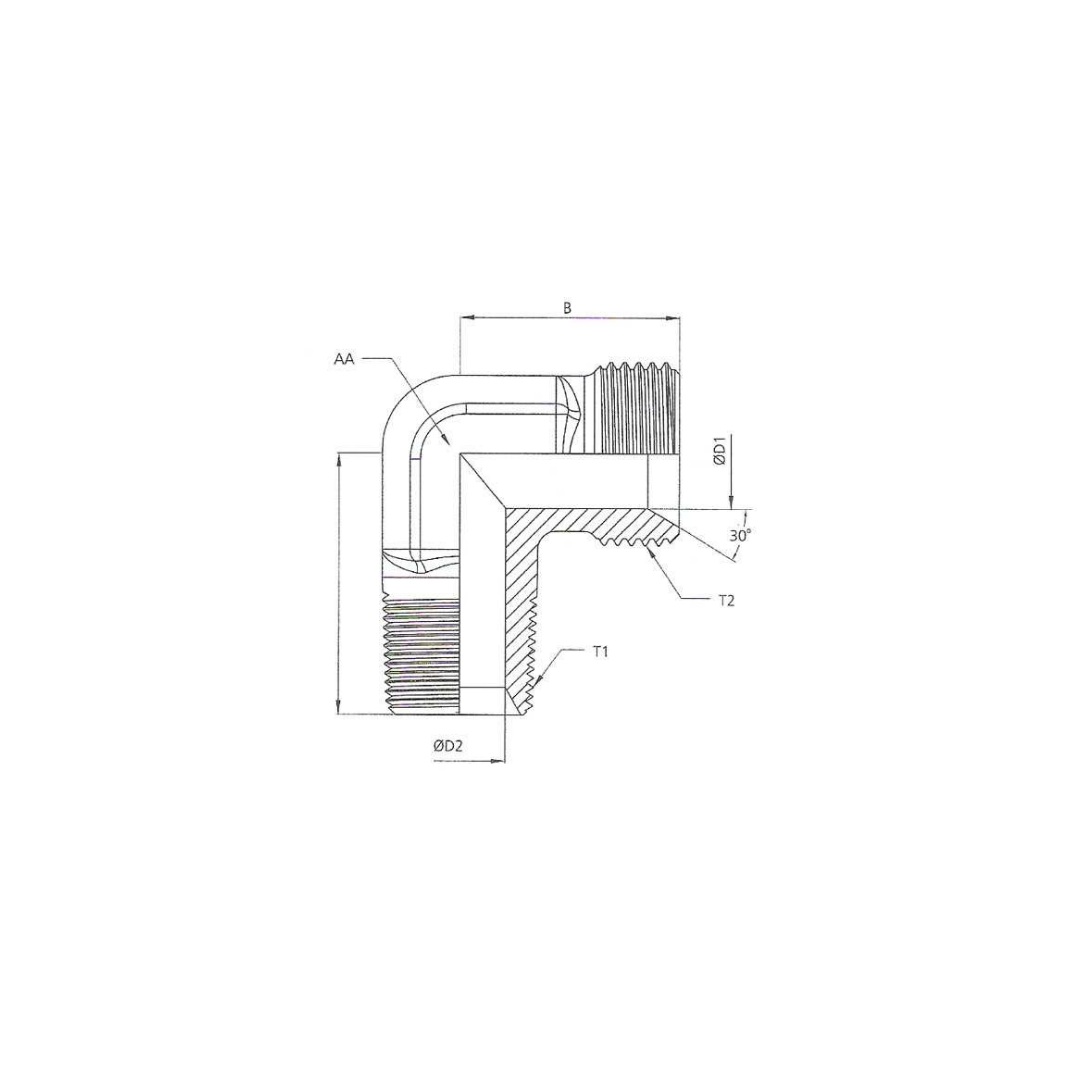

MATERIAL CODE		 DİŞ ÖLÇÜSÜ
THREAD SIZE
T1		 DİŞ ÖLÇÜSÜ
THREAD SIZE
T2		 B C ØD ØD1 AA
MCSNBD-1818 1/8-28 BSPT R1/8-28 20 20 4 4 12
MCSNBD-1414 1/4-19 BSPT R1/4-19 28 22.5 7 7 14
MCSNBD-3838 3/8-19 BSPT R3/8-19 28.5 24.5 9 9 17
MCSNBD-1212 1/2-14 BSPT R1/2-14 32.5 28 12 12 19
MCSNBD-3434 3/4-14 BSPT R3/4-14 42 37 15 15 27
MCSNBD-1111 1″-11 BSPT R1″-11 45.5 42.5 20 20 36
MCSNBD-114114 1″1/4-11 BSPT R1″1/4-11 50 49 26 26 41
MCSNBD-112112 1″1/2-11 BSPT R1″1/2-11 60 57 31 31 50
