Flanşlı Düz Hortum Rakoru 6000 Serisi
- Description
Description

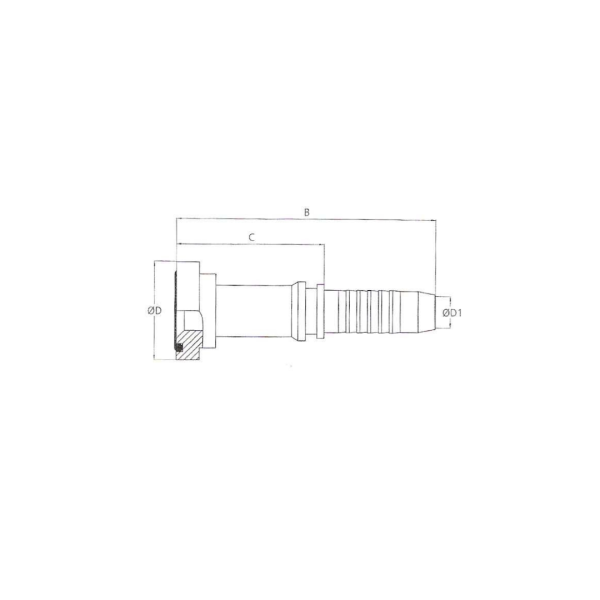

| MALZEME KODU MATERIAL CODE |
HORTUM ÖLÇÜSÜ HOSE SIZE |
FLANŞ ÖLÇÜSÜ FLANGE SIZE ØD |
B | C | F | ØD1 | |
| mm | inch | ||||||
| MCSFLD6000-1232 | 12 | 1/2 | 32 | 83 | 50 | 8 | 9 |
| MCSFLD6000-12341 | 12 | 1/2 | 34,1 | 84 | 51 | 8 | 9 |
| MCSFLD6000-5832 | 16 | 5/8 | 32 | 95 | 55 | 8 | 12 |
| MCSFLD6000-58341 | 16 | 5/8 | 34,1 | 95 | 55 | 8 | 12 |
| MCSFLD6000-58413 | 16 | 5/8 | 41,3 | 101 | 61 | 9 | 12 |
| MCSFLD6000-34413 | 19 | 3/4 | 41,3 | 106 | 62 | 9 | 14 |
| MCSFLD6000-34476 | 19 | 3/4 | 47,6 | 106 | 62 | 10 | 14 |
| MCSFLD6000-11476 | 25 | 1″ | 47,6 | 120 | 66 | 10 | 19 |
| MCSFLD6000-1154 | 25 | 1″ | 54 | 120 | 66 | 10.5 | 19 |
| MCSFLD6000-114476 | 32 | 1″1/4 | 47,6 | 131 | 71.5 | 10 | 25 |
| MCSFLD6000-11454 | 32 | 1″1/4 | 54 | 131 | 71.5 | 10.5 | 25 |
| MCSFLD6000-114635 | 32 | 1″1/4 | 63,5 | 133.5 | 74 | 12.7 | 25 |
| MCSFLD6000-112635 | 38 | 1″1/2 | 63,5 | 148.5 | 76.5 | 12.7 | 29 |
