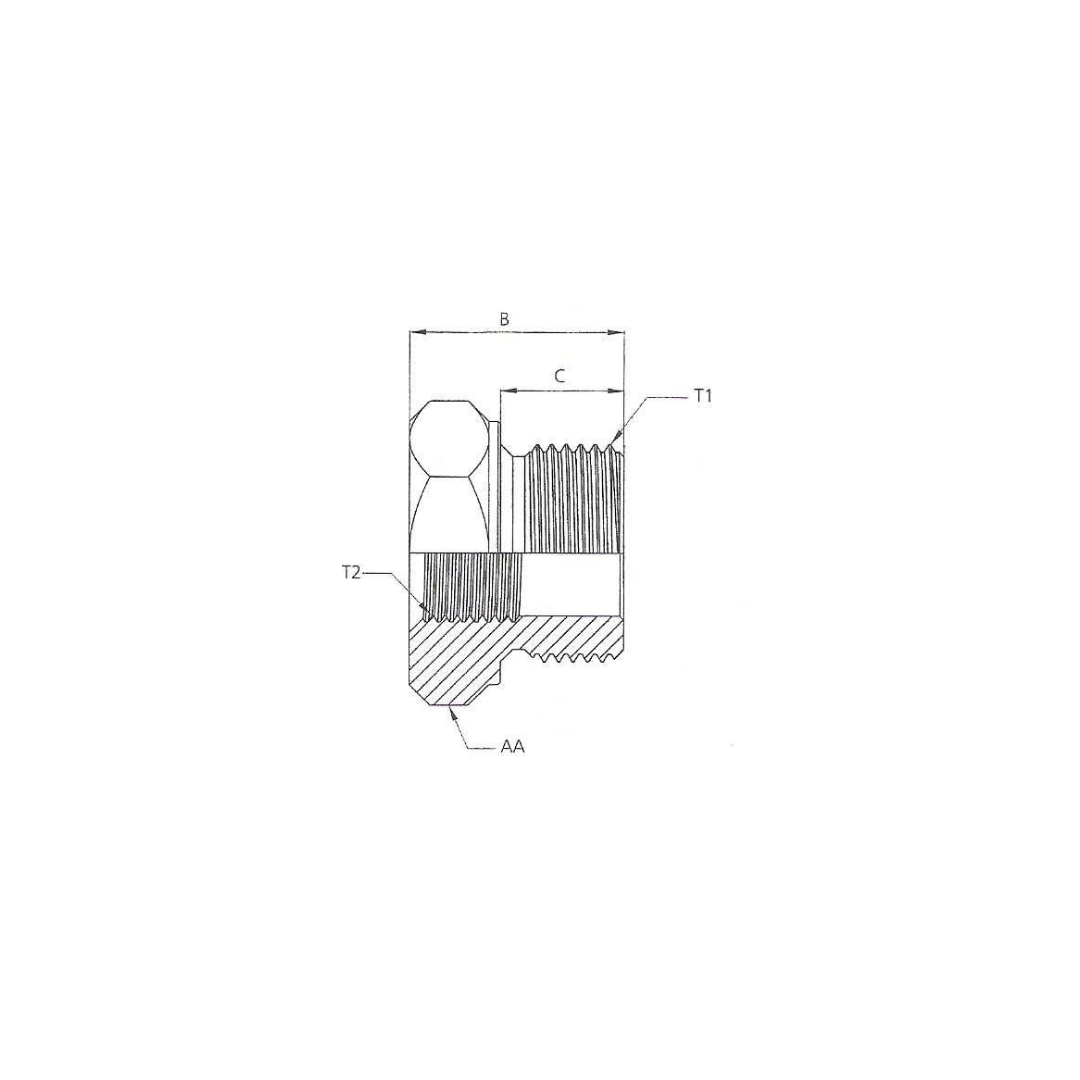

Description

MALZEME KODU
MATERIAL CODE		 DİŞ ÖLÇÜSÜ
THREAD SIZE
T1		 DİŞ ÖLÇÜSÜ
THREAD SIZE
T2		 B C AA
MCSBKR-1418 R1/4-19 R1/8-28 20 12 19
MCSBKR-3818 R3/8-19 R1/8-28 20.5 12 22
MCSBKR-3814 R3/8-19 R1/4-19 20.5 12 22
MCSBKR-1214 R1/2-14 R1/4-19 24 14 27
MCSBKR-1438 R1/2-14 R3/8-19 24 14 27
MCSBKR-3414 R3/4-14 R1/4-19 27 16 32
MCSBKR-3438 R3/4-14 R3/8-19 27 16 32
MCSBKR-3412 R3/4-14 R1/2-14 27 16 32
MCSBKR-1112 R1″-11 R1/2-14 30 18 41
MCSBKR-1134 R1″-11 R3/4-14 30 18 41
MCSBKR-11434 R1″1/4-11 R3/4-14 33.5 20 50
MCSBKR-11411 R1″1/4-11 R1″-11 33.5 20 50
MCSBKR-11211 R1″1/2-11 R1″-11 36 22 55
MCSBKR-112114 R1″1/2-11 R1″1/4-11 36 22 55
MCSBKR-22114 R2″-11 R1″1/4-11 42 24 70
MCSBKR-22112 R2″-11 R1″1/2-11 42 24 70
