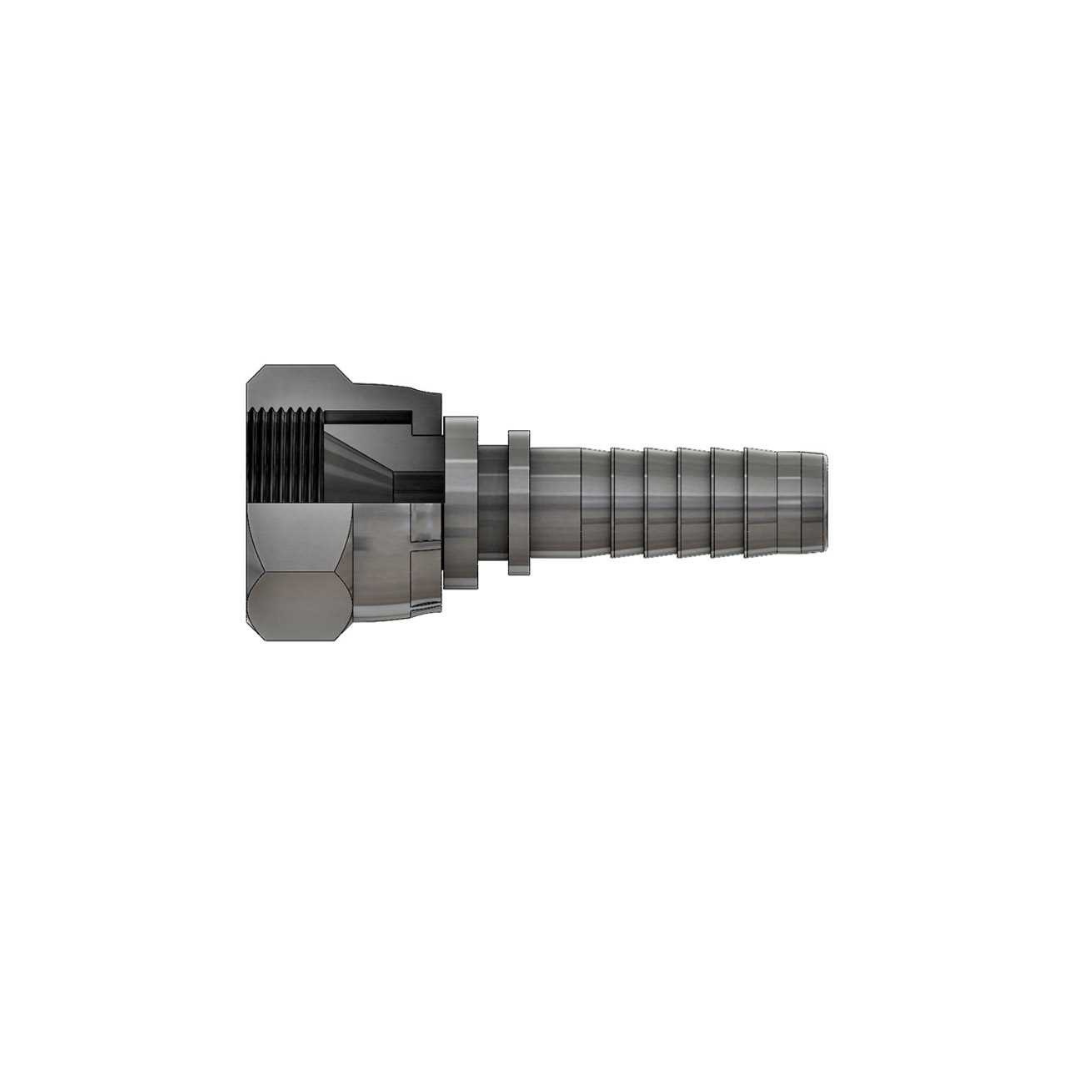

BSP İçe Havşa Düz Hortum Rakoru
NPT Erkek Hortum Rakoru

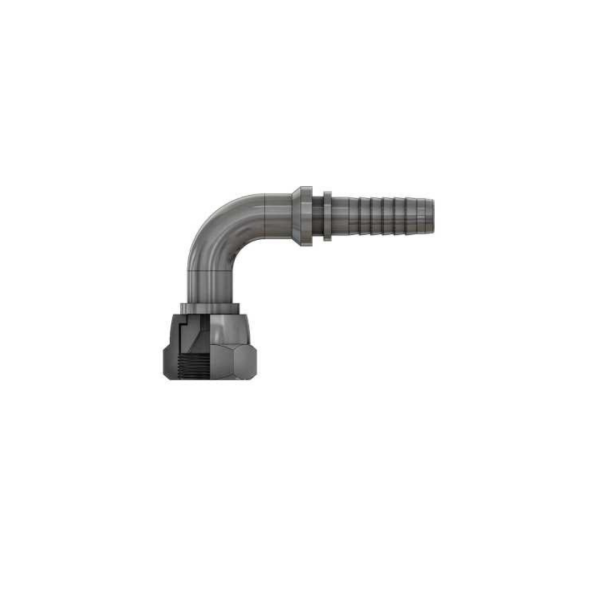

BSP İçe Havşa 90° Hortum Rakoru


Description

MALZEME KODU
MATERIAL CODE		 HORTUM ÖLÇÜSÜ
HOSE SIZE		 SOMUN ÖLÇÜSÜ

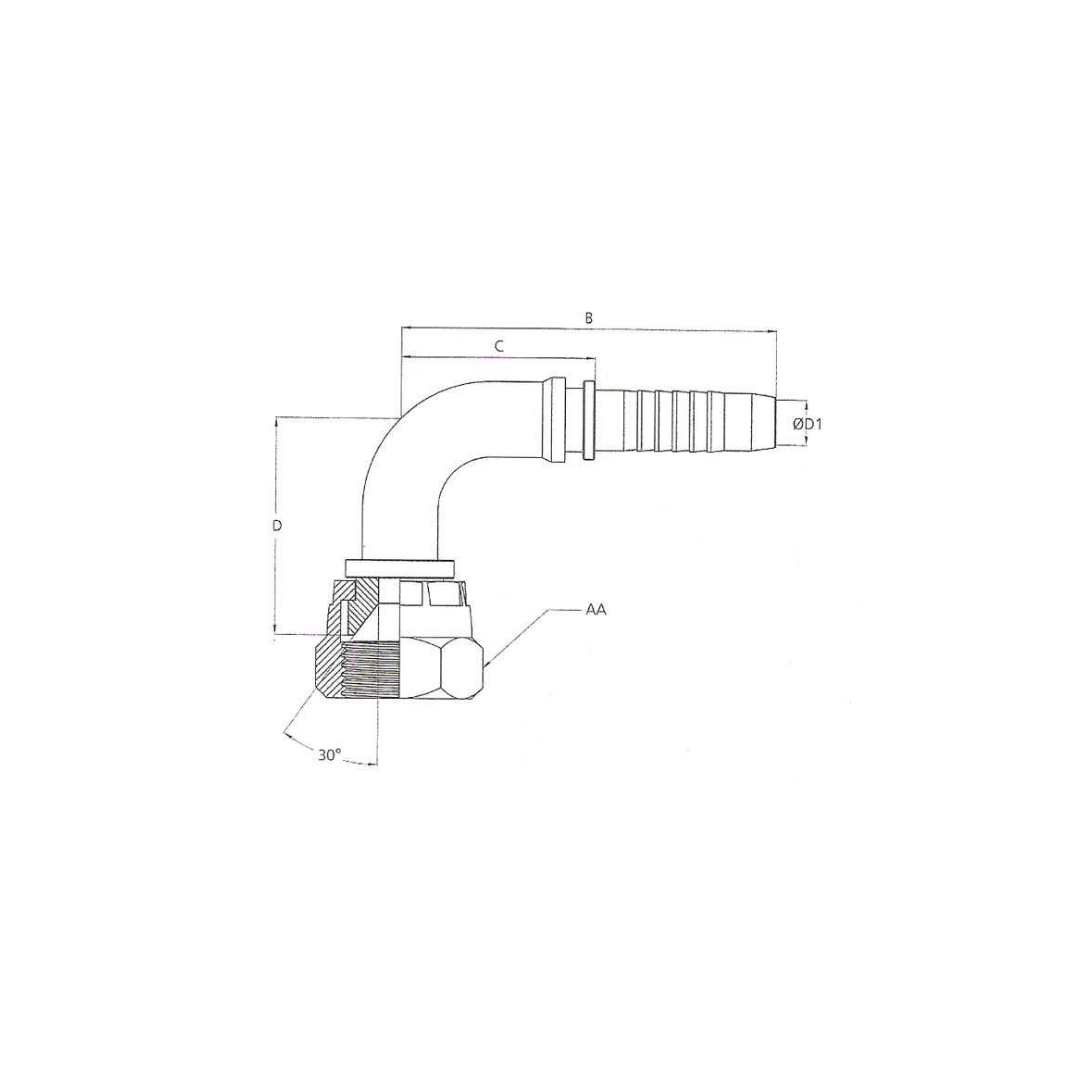

NUT SIZE		 B C E ØD AA
mm inch
MCSBH90-1414 6 1/4 R1/4-19 50 25 27 4 17
MCSBH90-1438 6 1/4 R3/8-19 50 25 29 4 22
MCSBH90-1412 6 1/4 R1/2-14 50 25 31 4 27
MCSBH90-51638 8 5/16 R3/8-19 55 28 30 5.5 22
MCSBH90-51612 8 5/16 R1/2-14 55 28 32 5.5 27
MCSBH90-3838 10 3/8 R3/8-19 61.5 32.5 33 7 22
MCSBH90-3812 10 3/8 R1/2-14 61.5 32.5 37 7 27
MCSBH90-1212 12 1/2 R1/2-14 69.5 37.5 37 9 27
MCSBH90-5834 16 5/8 R3/4-14 84 45 54 12 32
MCSBH90-3434 19 3/4 R3/4-14 100 57 51 14 32
MCSBH90-1111 25 1″ R1″-11 122 69 66 19 41
MCSBH90-114114 32 1″1/4 R1″1/4-11 140 80 87 25 50
MCSBH90-112112 38 1″1/2 R1″1/2-11 175 105 100 29 55
